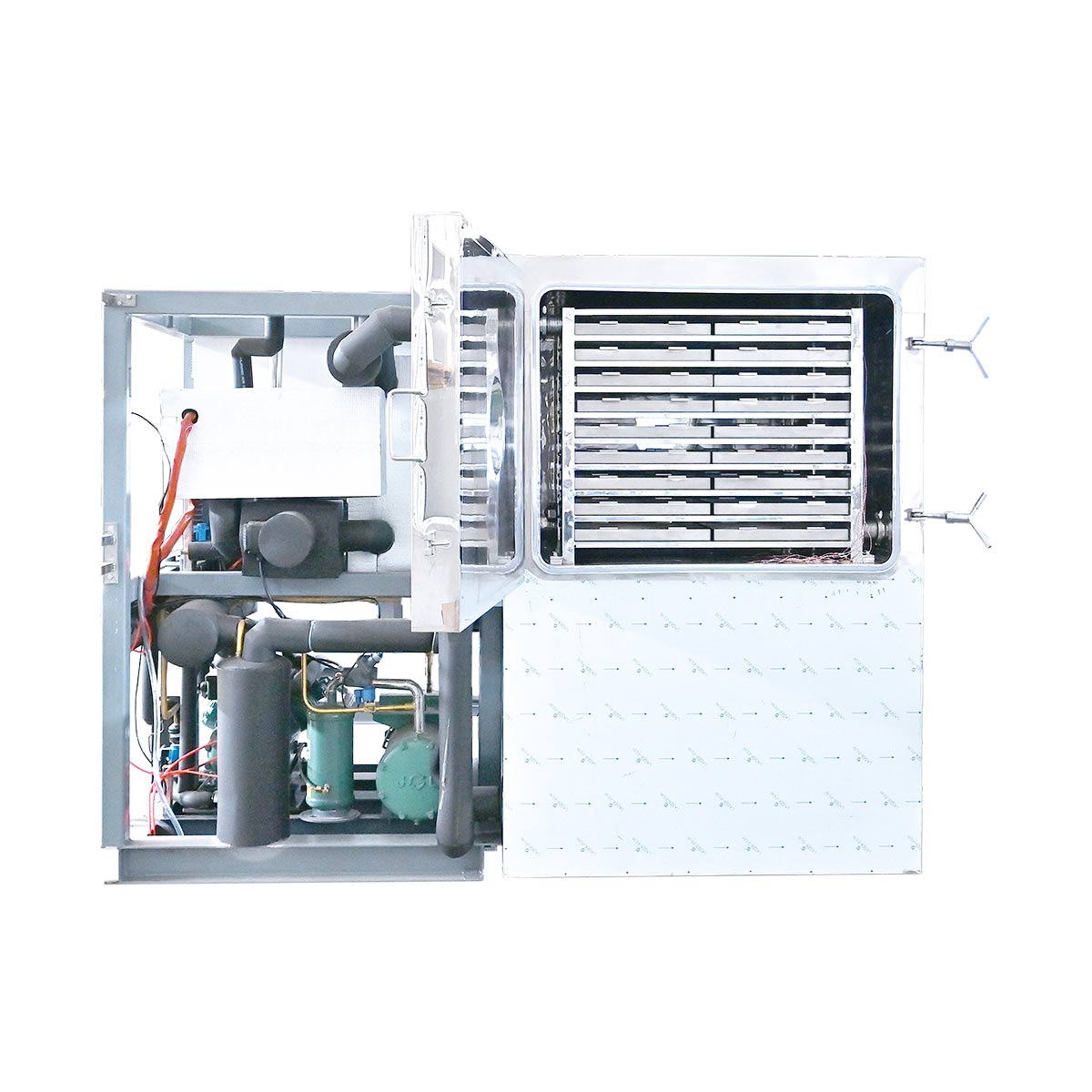

General Purpose Freeze Dryers

The FDLC series general purpose freeze dryers feature internal ice condenser, the vapor condensing coils are placed directly beneath shelves, which has been proved high vapor collect performance. The FDLC freeze dryers are small footprint, economic price and suitable for freeze drying bulk materials.

• Shelf area up to 8.4m2, meet commercial small production demand.
• Versatile apply to bulk goods in nearly all industries.
• Designed meet industry 7*24*365 heavy use.
• Integrated structure, all accessories are mounted on a steel skid, easy to transport and install.
• S/S made drying chamber, shelves, trays and condenser.
• Rectangular drying chamber with stainless steel door.
• Shelves in upper half, condenser in lower half.
• Heat transfer fluid based shelves, temperature controllable from -50C to +70C.
• Ice condenser lowest -75C, defrost by water soak.
• 2-stage oil sealed rotary vane vacuum pump can pull chamber to 3Pa or better.
• Chamber vacuum regulate kit.
• Water cooled, semi-hermetic compressor system.
• PLC and touch screen HMI based control system.
• PT100 temperature sensors for products, shelves, fluid and condenser.
• Pirani vacuum gauge for chamber pressure measurement.
• Qualification documents and technical support.
• Thoroughly quality and performance test before shipment.
