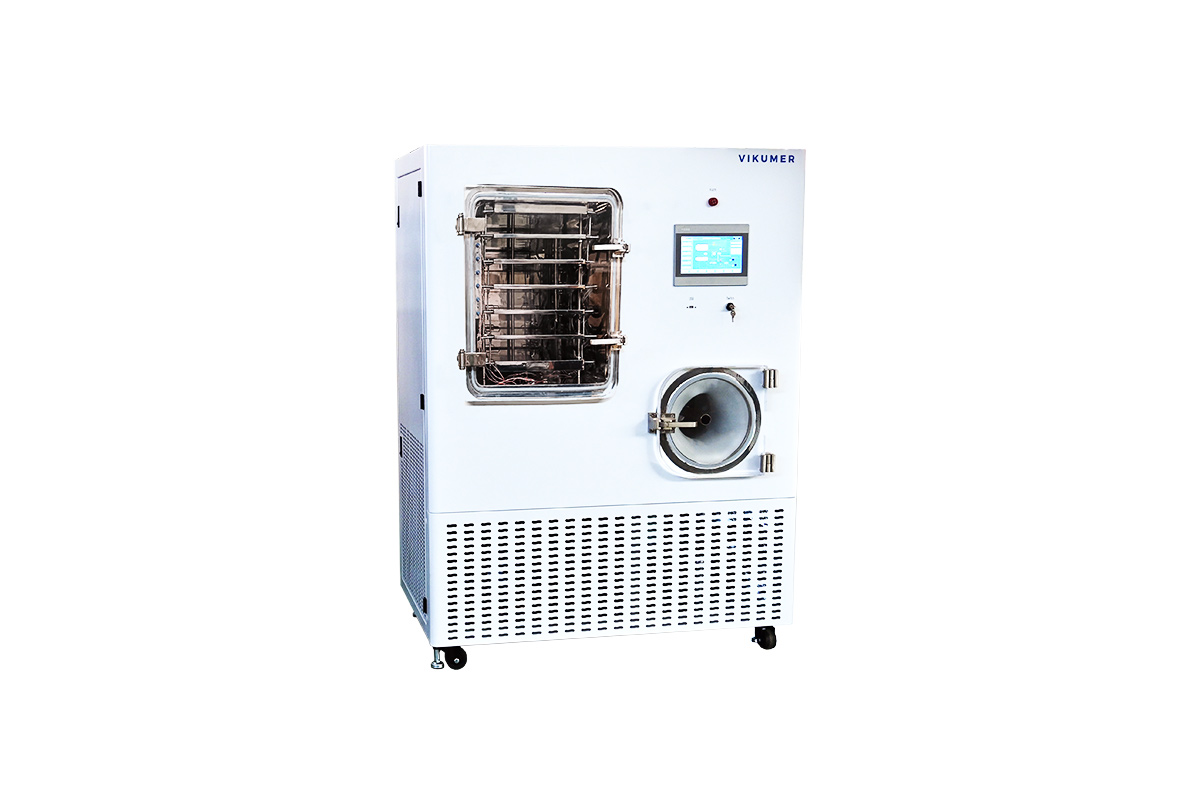

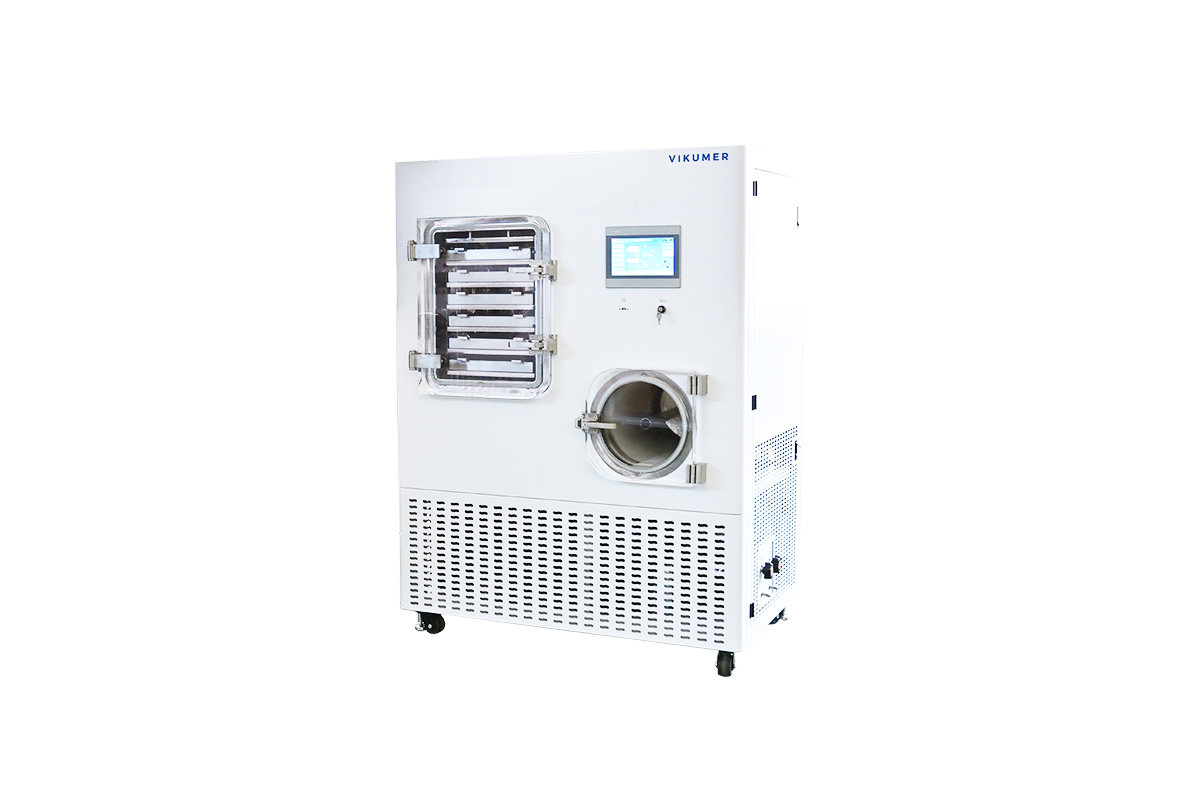

Pilot Freeze Dryer BFD-5
Lab R&D and Small-scale Trial Freeze Dryer
The BFD-5 pilot freeze dryer is developed specially for R&D laboratories to conduct research development activities and analyze small freeze drying batches. It offers up to 0.64m2 shelf area and has a 35L ice condenser.
The BFD-5 freeze dryer is all-in-one design, all associated machinery involved with the operation of it is installed in a powder coated steel cabinet, with casters and height adjustable feet. The machine is delivered fully assembled, plug and play. A wide variety of accessories can be integrated into the system to meet the diverse needs of freeze drying applications in industrial laboratories.
Key Features and Benefits
01.
Compact
All-in-one system, plug and play delivery.
02.
Versatile
Drying cycle research, process optimization and to process small production batches.
03.
Advanced Performance
Similar technical features and system performance to the industrial units.
04.
Flexible Configuration
A wide range of accessories can be equipped to expand machine functions.
05.
S/S Fabricated
S/S product chamber, shelves, trays, condenser and pipelines.
06.
PLC Based Controller
Interface with user friendly touch screen HMI, reliable and easy to use.
07.
Up to 0.64m2 Shelf area
User can select up to 6+1 shelves, total 0.64m2 shelf area.
08.
35L Condenser Capacity
Ice condenser volume 35L, capable of condensing up to 10Kg of vapor in 24hrs.
09.
2-Chamber System
Rectangular drying chamber, horizontal cylindrical ice condenser.
10.
Fluid-Based Shelves
High efficiency and guarantee shelves temperature uniformity.
11.
Shelf Spacing
Optional from 380mm (1+1 shelf config.) to 50mm (6+1 shelf config.) fit various product form or vial type.
