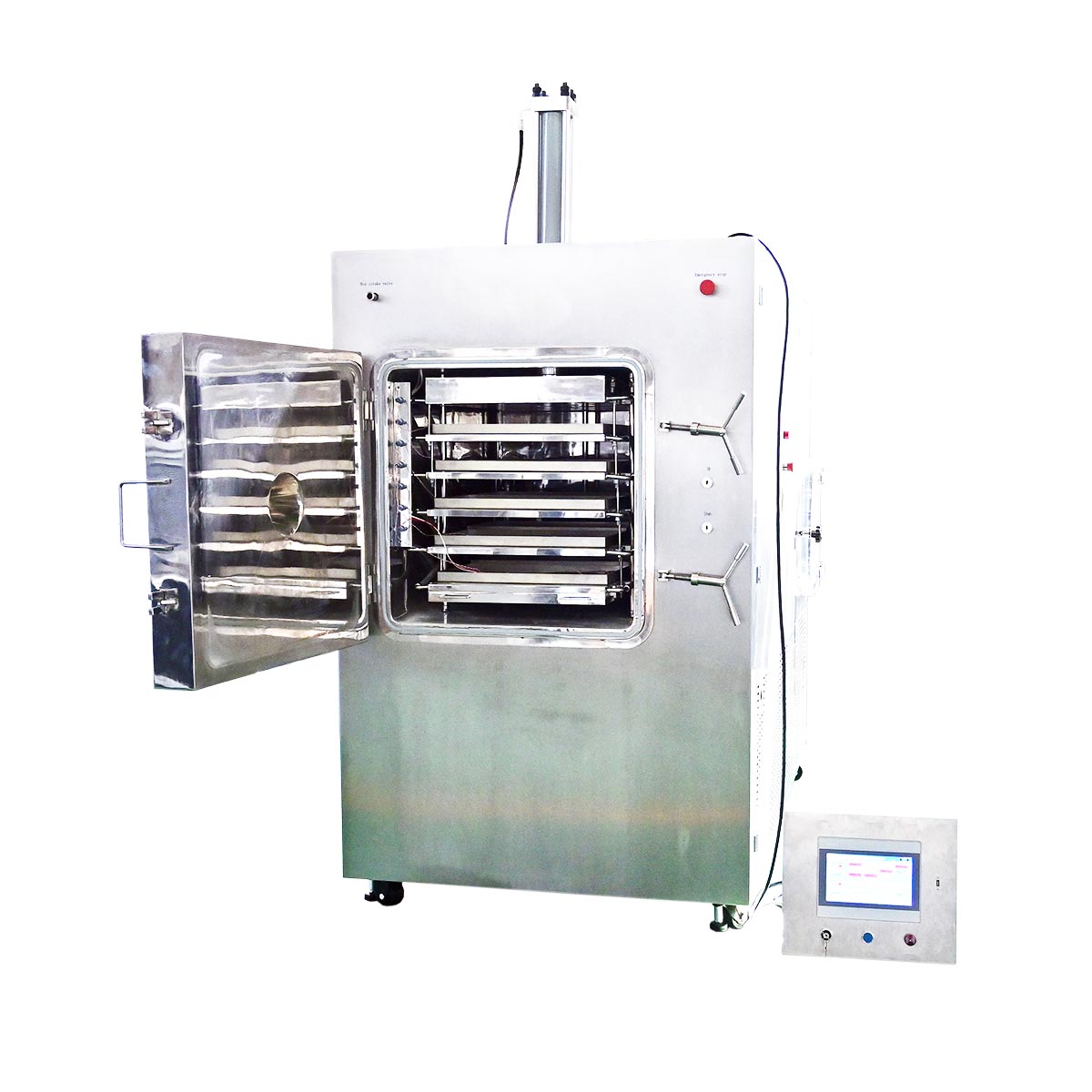

BFD-20 Pilot Freeze Dryer with Stoppering Shelves for Drying Products in Vials or in Bulk
The stoppering BFD-20 is equipped with a hydraulic stoppering system that can drive all the shelves to move up or down, this capability enables the dryer to process not only bulk goods but also products in vials, and to seal the vials after freeze drying.
User can select up to 6 shelves total 2.43m2 loading surface, coupled with an 100L ice condenser which is capable of collecting up to 30kg of vapor in 24hrs period.
Technical Specifications
Technical Features
- All include structure with casters and height adjustable feet.
- Clean room configuration.
- Rectangular drying chamber, maximum space using rate.
- S/S chamber door with sight glass.
- Flexible shelves, hydraulic stoppering.
- Heat transfer fluid based shelves, uniform temperature guarantee.
- External type, horizontal cylindrical ice condenser.
- Condenser auto defrost by surrounded electric rods.
- Stainless steel drying chamber, shelves and ice condenser.
- Air cooled, hermetic compressor system.
- 2-stage, oil sealed rotary vane vacuum pump inbuilt.
- Pirani type vacuum gauge.
- PT100 temperature sensors for product, shelf, fluid and ice condenser.
- Full color, touch screen HMI with LYO-PILOT interface:
- Alive display system working status and key parameters.
- Recipes management.
- Real time freeze drying trend.
- Data logging and can be exported via USB.
- Automatic and semi-automatic working.
- System setting and sensors calibration.
- System log-out and password enter.
- System protections.
- Side mounted vacuum break valve.
- Side mounted defrost water drain valve.
