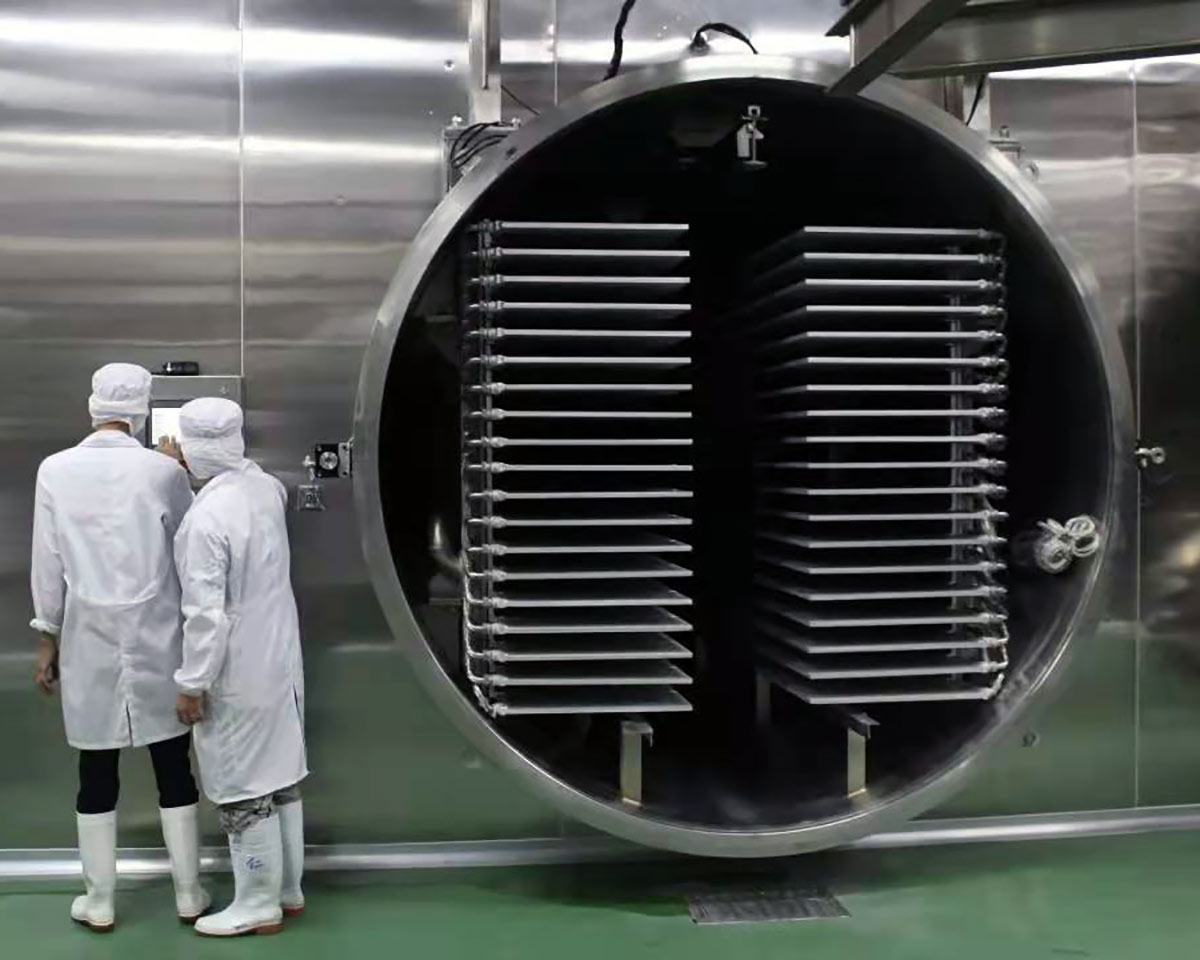

The Vikumer FDR freeze dryers are large capacity freeze drying machines that fit industrial mass production. Available shelf area from 50.8m2 to 206m2 and can be used to dry common food like fruits, snacks, meals and soup, as well as pet food and meat etc.

The FDR freeze dryers feature radiatively heated shelves for rapid drying cycle and overhead monorail trolley system for product quick loading unloading.

When freeze drying process is scaled up to industrial production, the freeze drying equipment have to be reliable to support the good running of your business, and they have to be energy saving to reduce your production cost. Vikumer uses its knowledge in the field and designed FDR freeze dryers.

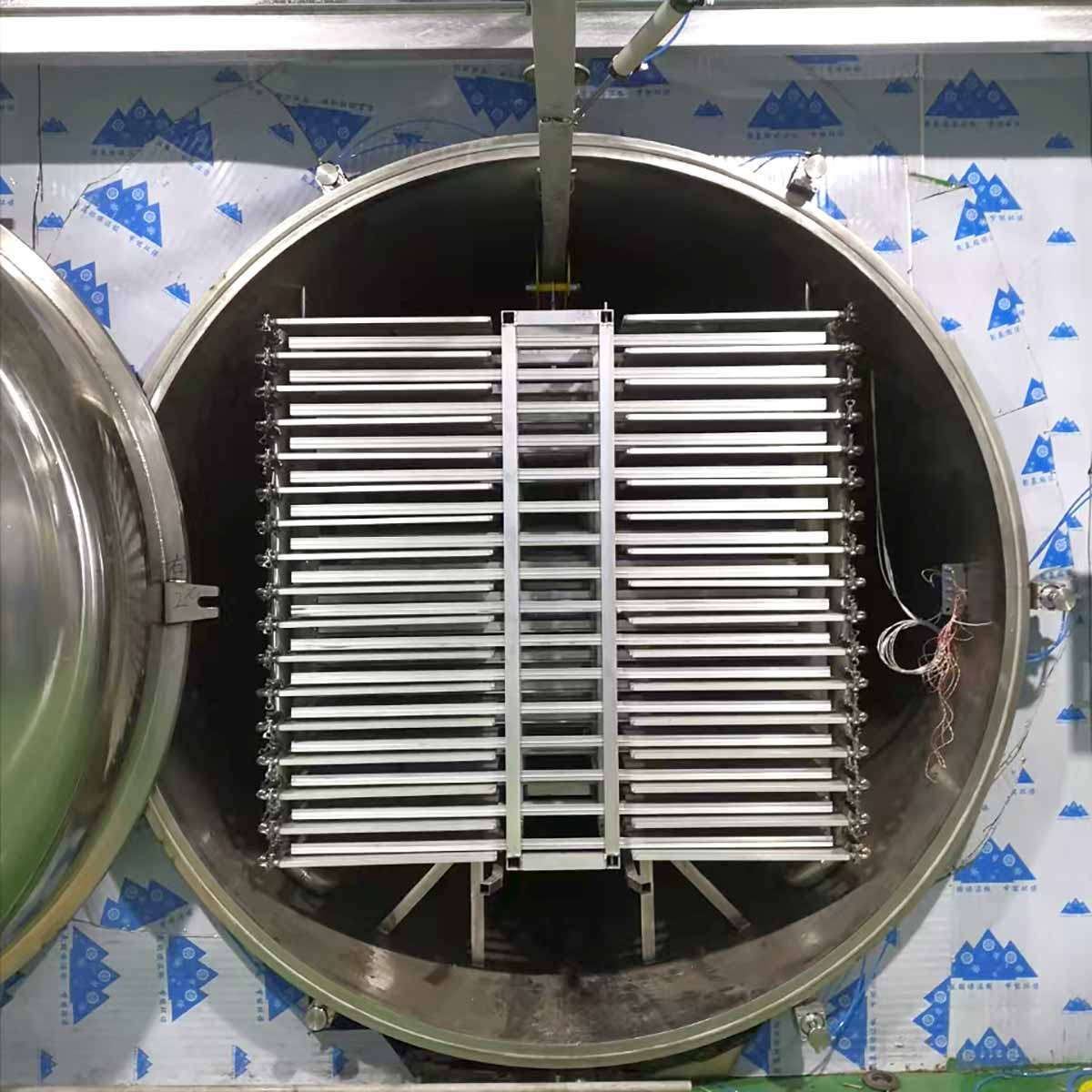

The FDR freeze dryers feature radiatively heated shelves, between which material trays are suspended after being loaded. The trays are handled via an overhead monorail trolley system, the trolleys move flexibly between freeze dryer, IQF, loading/unloading room and cleaning room, enabling rapid transfer of products and trays.

• Modularly engineered, all sub-systems are installed behand and besides drying chamber, easy to produce, transport, install and maintain.
• Stainless steel 304 made drying chamber, fully insulated to save energy and ensures internal temperature uniformity.
• Aluminum alloy made shelves, water based, high efficiency and precise temperature control.
• Radiative heating method, material trays are suspended after being loaded.

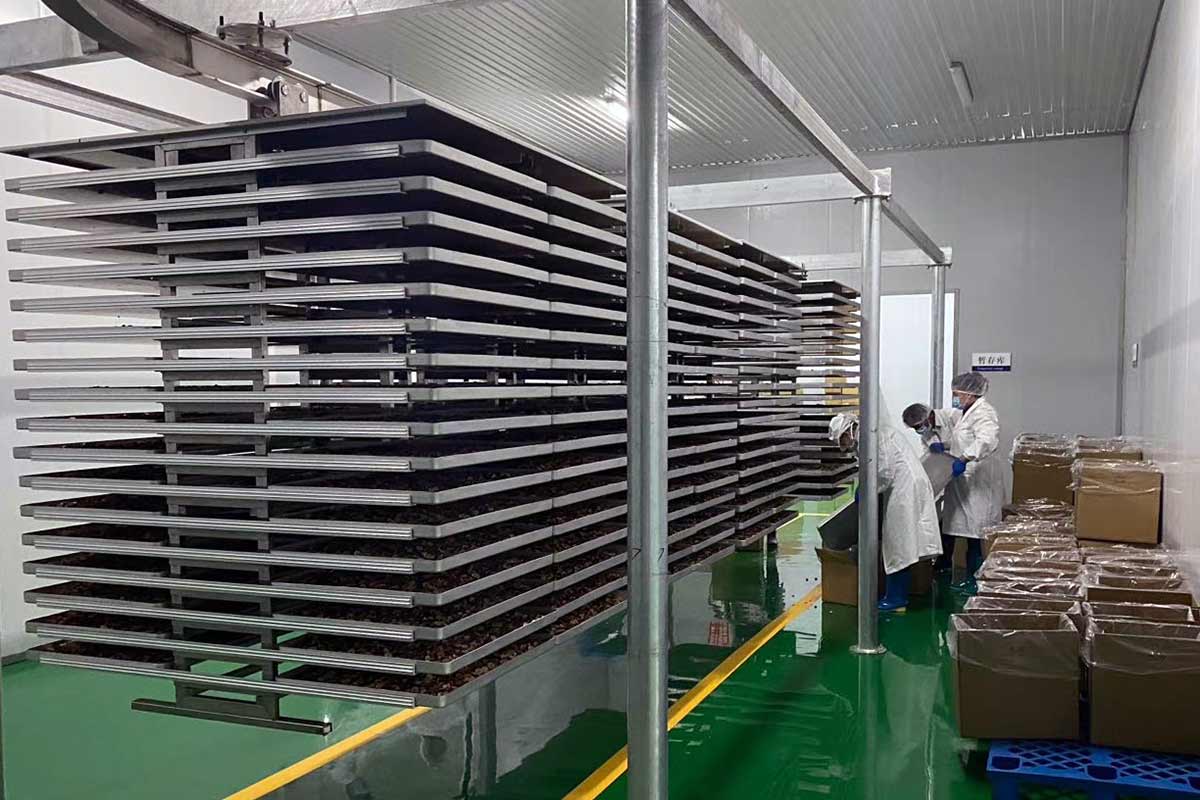

• Overhead monorail trolley system for material trays transfer, quick loading unloading.
• Coils type ice condenser besides or behinds product chamber, high performance cooled by refrigerant direct expansion.

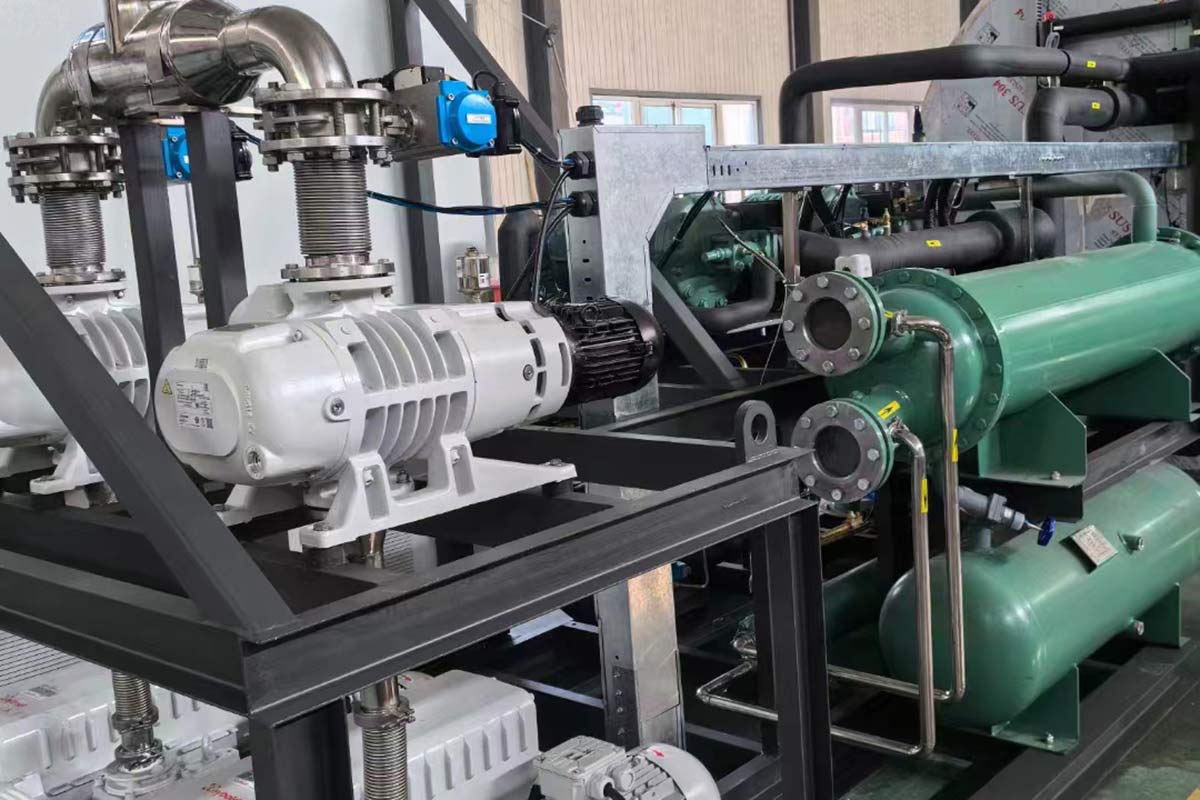

• Reliable vacuum system consists of primary vacuum system and main vacuum system.
• Screw compressor based refrigeration system, stable performance.
• Steam heating for shelves and fluid circulating.
• FD-MEGA control interface, powerful function and high reliability.
• Fully automatic freeze dry, programmable drying steps.
• Intuitive interface of touch screen HMI alive display system working status and key parameters, enable operator real time monitor freeze dryer and freeze drying.
• Drying data auto save and can be exported via USB.
• Qualification documents supply.
• Permanent technical support.
